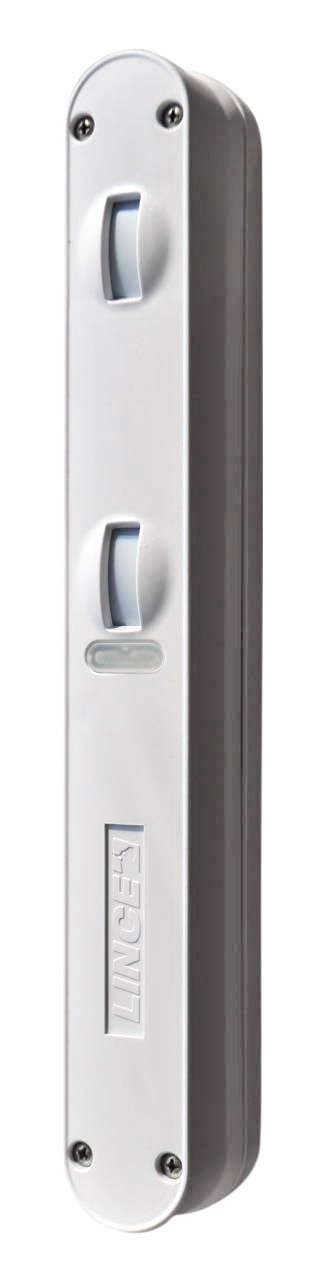

The 1872BABY/UE detector has been designed to be used with any other brand wireless system and any transmission protocol and to ensure maximum performance in outdoor environment. The thin body allows it to be used between window shutter and rolling shutter, or in outdoor (above a door or a window) with the aid of the bracket 1778SBI. The detector is composed by two dual PIR infrared sensors that, managed by a microcontroller, can be combined in different operations mode (AND or OR of PIRs). Using the WIN function (Wired Interface Network) is possible to supply the device through the main power, thus the detection has the same performance of a wired detector; with the WIN function is also possible to avoid the inhibition function after the first detection. Particular attention has been paid to the mechanics; a sealing gasket makes waterproof the compartment in which is housed the printed circuit board of the detector and of the transmitter with its battery power.
Available also in brown (item 1874BABY-M/UE).

  • Detection: 2 PIRs
  • Power supply: 2,35 ÷ 15 Vdc
  • Power consumption: 10 μA (stand-by) / 5 mA (max consumption)
  • LEDs: 3 (Green - PIR 1, Green - PIR 2, Red - Alarm)
  • PIR Sensitivity: adjustable
  • AND/OR function: selectable trough DIP-switches - double AND of PIRs / doppio OR of PIRs
  • Detection Coverage: 5 m at an height of 4 m
  • Alarm Output: NC-NO-C contact
  • Tamper Output: NC-NO-C contact
  • CWS function: discriminates the crossing direction (selectable)
  • WIN function: Wired Interface Network
  • Mode and time of inhibition: selectable by dip-switch
  • Housing: Polycarbonate and Fresnel lens UV resistant
  • Tearing and tampering: microswitch
  • Degree of Protection: IP55
  • Temperature compensation: automatic
  • Security Grade: Grade 2 (EN 50131-2-2)
  • Environmental Classification: Class III (EN 50131-1)
  • RF immunity: compliant to EN50130-4
  • Transmitter compartment dimensions: 90 x 23 x 33 mm
  • Dimensions: 256 x 34 x 41 mm
  • Operating Temperature: -25 °C ÷ +50 °C
  • Weight: 0.15 kg
