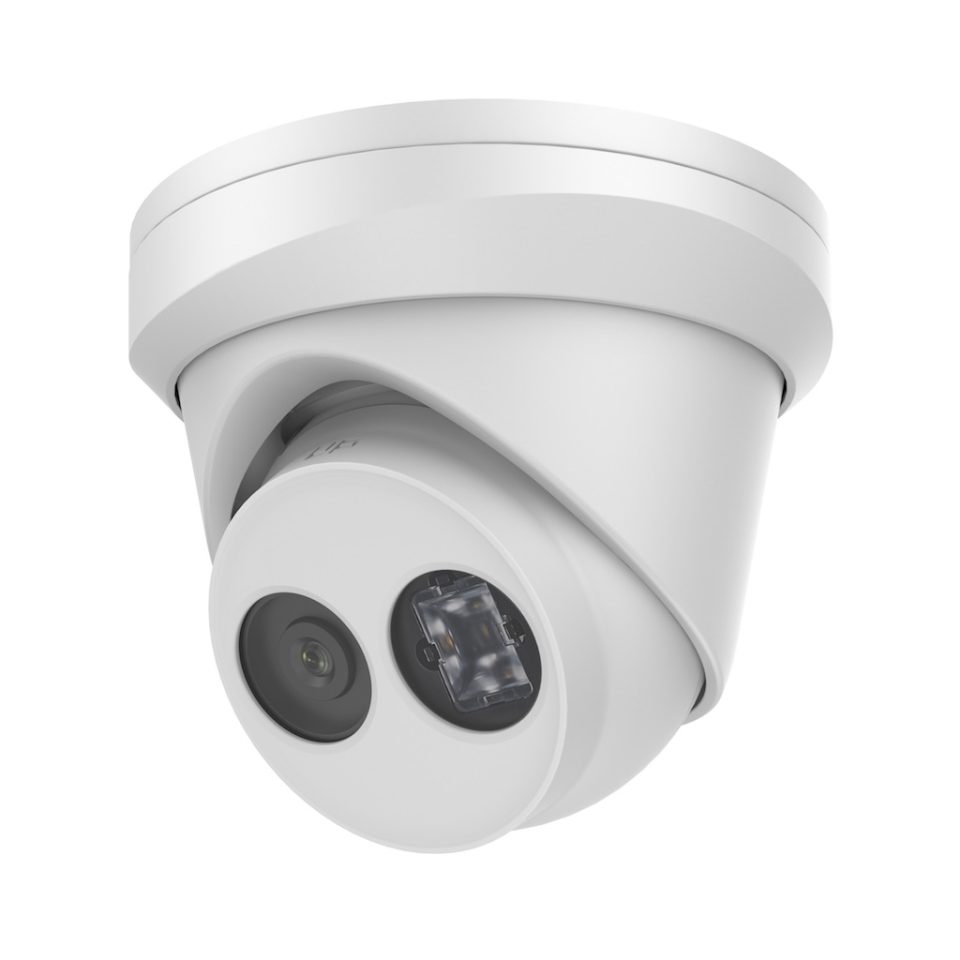

70573-IVH-45PIX

4 MP Fixed Turret Network Camera

High quality imaging with 4 MP resolution, Clear imaging against strong back light due to 120 dB WDR technology, Efficient H.265+ compression technology, -U: Built-in microphone for real-time audio security, Water and dust resistant (IP67), Focus on human and vehicle targets classification.

• Image Sensor: 1/3" Progressive Scan CMOS

• Min. Illumination: Colour: 0.005 Lux @(F1.6; AGC ON), 0 Lux with IR on
• Shutter Speed: 1/3 ÷ 1/100,000 s
• Slow Shutter: Yes
• P/N: P/N
• Wide Dynamic Range: 120 dB
• Day & Night: ICR Cut
• Angle Adjustment: Pan: 0° ÷ 360°, Tilt: 0° ÷ 75°, Rotate: 0° ÷ 360°
• Focal length: 2.8 mm
• Aperture: F1.6
• Focus: Fixed
• FOV
  • Horizontal FOV: 103°
  • Vertical FOV: 55°
  • Diagonal FOV: 122°
• Lens Mount: M12
• DORI: D: 67 m; O: 26 m; R: 13 m; I: 6 m
• IR Range: Up to 30 m
• Wavelength: 850 nm
• Max. Resolution: 2688 × 1520
• Main Stream
  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression
  • Main stream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 ÷ 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream supports
• H.265+: Main stream supports
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): Yes
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Environment Noise Filtering: -U: Yes
• Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps-64 Kbps (AAC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: CTR-MAZi, CMS- MAZi
• Web Browser:
  • Plug-in required live view: IE 10, IE 11
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D-DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Built-in Microphone: -U: yes
• On-board Storage: Built-in microSD, up to 256 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10 ÷ 100 M self-adaptive Ethernet port
• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Face Detection: Yes
• Perimeter Protection:
• Line crossing detection, intrusion detection
• Supports human and vehicle targets classification
• Linkage Method: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email
• Web Client Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
• Software Reset: Yes
• Storage Conditions: -30 °C ÷ 60 °C (-22 °F ÷ 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C ÷ 60 °C (-22 °F ÷ 140 °F). Humidity 95% or less (non-condensing)
• Power Supply: 12 Vdc ± 25%, reverse polarity protection; PoE: 802.3af, Class 3
• Power Consumption and Current: 12 Vdc, 0.5 A, max. 6 W; PoE (802.3af, 36 ÷ 57 V), 0.19 ÷ 0.12 A, max. 7 W
• Power Interface: Ø 5.5 mm coaxial power plug
• Material: Aluminum alloy body
• Dimension:
  • Camera: Ø 127.3 × 95.9 mm (Ø 5.01′′ × 3.78′′)
  • Package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
• Weight
  • Camera: ~600 g (1.3 lb.)
  • With Package: ~816 g (1.8 lb.)
• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950- 1: 2005 + Am 1: 2009 + Am 2: 2013); BIS (IS 13252 (Part 1): 2010 +A1: 2013 +A2: 2015)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013)
