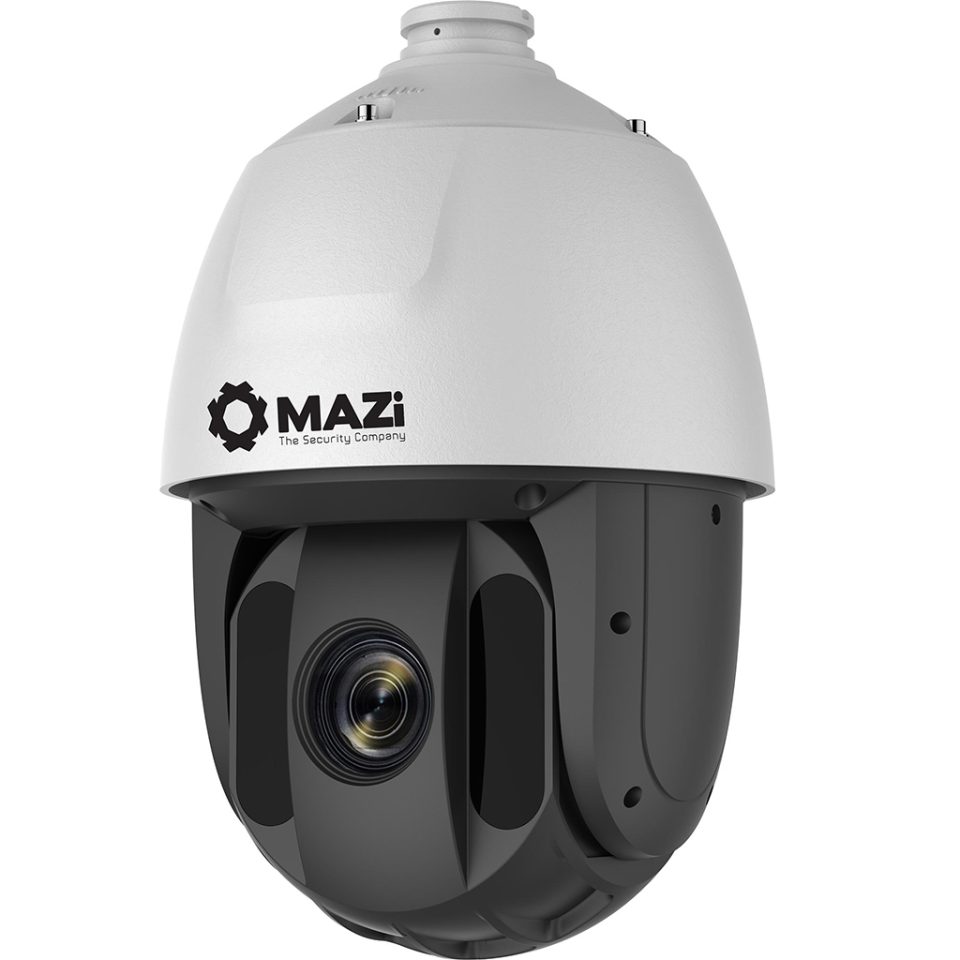

Speed DOME camera VALUE Series
2 MP IR Network Speed Dome, 3D-DNR, BLC, HLC, Defog, EIS, Colour: 0.005 Lux/(F1.6, AGC ON), B/W: 0.001 Lux/(F1.6, AGC ON), 0 Lux with IR, IP66, Power adapter included. With the 25X optical zoom lens, the camera offers more details over expansive areas.
- Image Sensor: 1/2.8" progressive scan CMOS
- Min. Illumination: Colour: 0.005 Lux @(F1.6, AGC ON); B/W: 0.001 Lux @(F1.6, AGC ON); 0 Lux with IR
- White Balance : Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
- Gain: Auto/Manual
- Shutter Time:
- 50 Hz: 1/1 ÷ 1/30,000 s
- 60 Hz: 1/1 ÷ 1/30,000 s
- Day & Night: IR Cut Filter
- Digital Zoom: 16X
- Privacy Mask: 24 programmable privacy masks, mask colour configurable
- Focus Mode: Auto/Semi-automatic/Manual
- WDR: 120 dB WDR
- Focal Length: 4.8 ÷ 120 mm, 25X optical zoom
- Zoom Speed: ~3.6 s (optical lens, wide-tele)
- Field of View:
- Horizontal FOV: 57.6° ÷ 2.5° (Wide-Tele)
- Vertical FOV: 34.4° ÷ 1.4° (Wide-Tele)
- Diagonal FOV : 64.5° ÷ 2.9° (Wide-Tele)
- Working Distance: 10 ÷ 1,500 mm (wide-tele)
- Aperture Range: F1.6 ÷ F3.5
- IR Distance: 150 m
- Smart IR: Yes
- Movement Range (Pan): 360° endless
- Pan Speed: Configurable, from 0.1°/s to 120°/s Preset speed: 120°/s
- Movement Range (Tilt): From -15° ÷ 90° (auto-flip)
- Tilt Speed: Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s
- Proportional Zoom: Yes
- Presets: 300
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
- Power-off Memory: Yes
- Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/ Panorama Scan
- 3D Positioning: Yes
- PTZ Position Display: Yes
- Preset Freezing: Yes
- Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/ Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
- Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264/MJPEG
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.264+: Yes
- H.265 Type: Baseline Profile/Main Profile/High Profile
- H.265+: Yes
- Video Bitrate: 32 ÷ 16,384 Kbps
- Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
- Audio Bitrate:
- G.711alaw/G.711ulaw: 64 Kbps
- G.722.1/G.726: 16 Kbps
- MP212/PCM: 32 ÷ 160 Kbps
- SVC: Yes
- Basic Event: Motion Detection, Video Tampering Detection, Exception
- Smart Event: Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
- Smart Record: ANR (Automatic Network Replenishment), Dual-VCA
- ROI: Main stream, sub-stream, and third stream respectively support four fixed areas
- Max. Resolution: 1920 x 1080
- Main Stream:
- 50 Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1280 × 960, 1280 × 720)
- 60 Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1280 × 960, 1280 × 720)
- Sub-Stream:
- 50 Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
- 60 Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream:
- 50 Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
- 60 Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
- Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
- Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Trigger Recording, Trigger Alarm Output, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
- Simultaneous Live View: Up to 20 channels
- User/Host: Up to 32 users; 3 levels: Administrator, Operator and User
- Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Client: Guarding Vision (CTR-MAZi), CMS-MAZi
- Web Browser: IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
- Network Interface: 1 RJ45 10 M/100 M Ethernet, Hi-PoE
- Audio:
- 1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
- 1-ch audio output, line level, impedance: 600 Ω
- Alarm: 2-ch alarm input/1-ch alarm output
- Language (Web Browser Access): 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power: 24 VAac 2.2 A, 50/60 Hz and Hi-PoE, 42.5 ÷ 57 Vdc, 1.41 A Max. 30 W, including Max. 10 W for IR
- Working Temperature: -30 °C ÷ 65°C (-22 °F ÷ 149 °F)
- Working Humidity: ≤ 90%
- Protection Level: IP66 Standard, 4000 V Lightning Protection, Surge Protection and Voltage Transient Protection
- Material: ADC 12, PC, PC+10% GF
- Dimensions: Φ 208 × 345 mm (Φ 8.19 × 13.58 inch)
- Weight: ~3.3 kg (7.28 lb)
